CELLULAR GLASS INSULATION

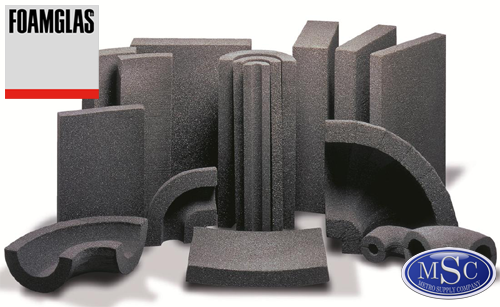

FOAMGLAS® ONE insulation is a lightweight, rigid material composed of millions of completely sealed glass cells. FOAMGLAS® ONE insulation is manufactured by Pittsburgh Corning in a block form and then fabricated into a wide range of shapes and sizes to satisfy industrial and commercial insulation requirements.

FOAMGLAS® ONE INSULATION SYSTEMS
FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS

Pittsburgh Corning insulation systems provide solutions for a wide range of piping and equipment applications at operating temperatures from -450ºF to 900ºF.

  • Cryogenic systems
  • Low temperature pipe, equipment, tanks and vessels
  • Medium and high temperature pipes and equipment
  • Hot oil and hot asphalt storage tanks
  • Heat transfer fluid systems
  • Hydrocarbon processing systems
  • Chemical processing systems
  • Above ground and underground steam and chilled water piping
  • Commercial piping and ductwork

FOAMGLAS BENEFITS:

CONSTANT INSULATING EFFICIENCY
FOAMGLAS® ONE insulation has a homogeneous, closed cell glass structure that resists moisture in both liquid and vapor forms and results in long term, constant insulating efficiency.

NONCOMBUSTIBLE
FOAMGLAS® ONE insulation is 100% glass and contains no binders or fillers – it cannot burn. It will not absorb flammable liquids or vapors. If a facility fire occurs, FOAMGLAS® ONE™ insulation can help protect people and equipment by aiding in the containment or suppression of the flames.

CORROSION RESISTENT
FOAMGLAS® ONE insulation is unaffected by common chemicals and by most corrosive atmospheres. It does not promote metal corrosion and its moisture resistance will help keep water from reaching equipment and piping.

LONG TERM DIMENSIONAL STABILITY
FOAMGLAS® ONE insulation is not affected by temperature differentials and humidity. It will not swell, warp, shrink or otherwise distort. The integrity of the insulation remains intact even at the extremes of cryogenic service.

VERMIN RESISTANCE
FOAMGLAS® ONE insulation is resistant to vermin, as well as microbes and mold.

HIGH COMPRESSIVE STRENGTH
FOAMGLAS® ONE insulation can withstand loads which crush most other insulating materials. In a properly designed piping system, it eliminates the need for special treatment at pipe cradles. It provides a fire base for roof membranes, jacketing or vapor retarders, and can prolong their life.

ECOLOGICALLY FRIENDLY, SUSTAINABLE
FOAMGLAS® ONE insulation is free of CFC’s and HCFC’s and has been formally recognized as an ecologically friendly, sustainable construction material.

STANDARDS, CERTIFICATIONS AND APPROVALS

  • ASTM C552 “Specification for Cellular Glass Thermal Insulation”
  • ASTM C1639 “Standard Specification for Fabrication of Cellular Glass Piping and Tubing Insulation”
  • Military Specification MIL-DLT-24244D (SH), with Special Corrosion and Chloride Requirement”
  • Nuclear Regulatory Guide 1.36, ASTM C795, C692, C871
  • Flame Spread Index 0, Smoke Developed Index 0 (UL 723, ASTM E 84), UL R2844; also classified by UL of Canada
  • ISO 9001: 2008
  • UL 1709, Rapid Rise Fire Tests of Protection Materials for Structural Steel
  • UL Through Penetration Fire Stop Approved Systems
  • UL1479/ASTM E814
  • Board of Steamship Inspection (Canada) Certificate of Approval No. 100 / FI-98
  • General Services Administration, PBS (PCD; 15250, Public Building Services Guide Specification, “Thermal Insulation (Mechanical)”
  • New York City Department of Buildings, MEA #138-81-M FOAMGLAS® insulation for piping, equipment, walls and ceilings
  • New York State Uniform Fire Prevention and Building Code
  • Department of state (DOS) 07200-890201-2013
  • City of Los Angeles General Approval RR22534
  • USGS Approval for Non-combustible Inspections
  • GreenSpec® Listed
  • EC-114.456 USCG 164.109/EC0736/114.456 Approval for marineuse

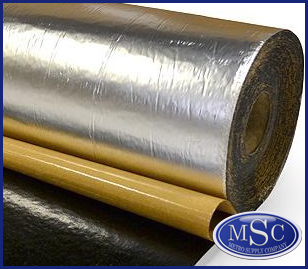

Pittsburgh Corning PittWrap Jacketing System for Foamglas Pipe Insulation
