FIBERGLASS PRE MOLDED FITTINGS AND ELBOWS

FIBERGLASS PRE-FORMED FITTINGS AND ELBOWS

Molded pipe fitting insulators are molded in two matching half sections, using fine, inert fibered glass of uniform density, utilizing a thermosetting resin.  Sections match as premolded units with no handwork, and are resilient and light in weight.

Elbows

APPLICATIONS:

Premolded fittings are designed to insulate heating, cooling, or process piping systems operating at temperatures from -20°F to +650°F. The fittings are normally applied by placing two premolded matching half-sections over the pipe fitting, and joining them together using tape, wire, or adhesive. After being joined, the fitting is ready for jacketing, vapor barrier coating, or other finishes.

When ordering please specify the following:

  1. Type of material to be used (Fiberglass or Mineralwool)
  2. Type of fitting (90°, 45°, Tee)
  3. Thickness of Insulation needed
  4. Type of Elbow (Screwed, Weld, Copper Tube)

*AVAILABLE IN FIBERGLASS OR MINERALWOOL

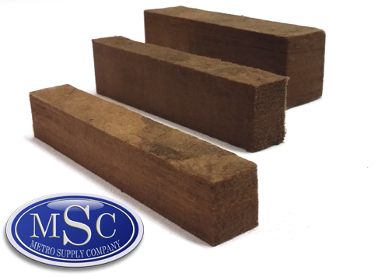

FIBERGLASS PIPE SUPPORT BLOCKS

H-Blocks are 18# density molded fiberglass which is a dark brown color. H-Blocks were designed to be utilized as a superior pipe support system and to prevent crushing and bottoming-out of the surrounding insulation. H-Blocks enhance the thermal and vibration control properties of the entire insulation system.

APPLICATIONS:

H-Blocks are designed for all types of piping systems operating at temperatures between -120°F to +650°F.

H-Block sizes will accommodate pipe sizes from 1/2" to 24" IPS, and insulation thicknesses from 1/2" to 4".

Fiberglass H Block Pipe Supports
