CHILDERS WEATHER BARRIER COATINGS
WEATHER BARRIER COATING PRODUCT SELECTION GUIDE



FIBERGLASS / MINERAL WOOL / CELLULAR GLASS / POLYURETHANE
POLYISOCYANURATE / PHENOLIC FOAM
Piping, Fittings, Vessels, and Equipment Operating at:

Air-Conditioning Ducts
&
Dual Service Ducts

Warm Air Ducts

Below Ambient Temp Above Ambient Temp
OUTDOOR APPLICATION
Encacel X/V CP-40/45

Chil-Pruf CP-22/24

AK-Cryl CP-9

Vi-Cryl CP-10/11

Encacel X/V CP-40/45

Chil-Perm WB CP-35
|
Chil-Pruf CP-22/24

AK-Cryl CP-9

Vi-Cryl CP-10/11
INDOOR APPLICATION
Chil-Perm CP-30 Low Odor

Chil-Perm WB CP-35

Vapor Retarder Coating CP-34
AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2

Chil-Perm WB CP-35

Vapor Retarder Coating CP-34

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2

AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2
EXTRUDED AND EXPANDED POLYSTYRENE INSULATIONS (FOAMULAR / EPS BOARD)
Piping, Fittings, Vessels, and Equipment Operating at: Air-Conditioning Ducts
&
Dual Service Ducts
Warm Air Ducts
Below Ambient Temp Above Ambient Temp
OUTDOOR APPLICATION
Chil-Perm WB CP-35

Vapor Retarder Coating CP-34
AK-Cryl CP-9

Vi-Cryl CP-10/11
Chil-Perm WB CP-35 AK-Cryl CP-9

Vi-Cryl CP-10/11
INDOOR APPLICATION
Chil-Perm WB CP-35

Vapor Retarder Coating CP-34
AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2

Chil-Perm WB CP-35

Vapor Retarder Coating CP-34
AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2

CALCIUM SILICATE AND PERLITE INSULATIONS
Piping, Fittings, Vessels, and Equipment Operating Above Ambient

Normal Service Heavy-Duty Service
OUTDOOR APPLICATION
AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Brate CP-25

AK-Cryl CP-9

Vi-Cryl CP-10/11

Chil-Brate CP-25

INDOOR APPLICATION

Chil-Seal CP-50A MV1

Chil-Seal CP-50A HV2

AK-Cryl CP-9

Vi-Cryl CP-10/11


CHILDERS CP-9 AK-CRYL MASTIC COATING
(WATER  BASED)

DESCRIPTION:
Childers AK-CRYL CP-9 is a polymeric, water based weather barrier, breather type mastic. CP-9 dries to a tough flexible film that protects thermal insulation from the ravages of weather by preventing water, rain, snow, sleet, spillage, wash water, etc., from entering into the system. In addition, CP-9 provides protection from mechanical damage created by external forces such as impact abrasion as well as the internal forces of thermal expansion, contraction, or vibration.  Using CP-9 can also protect the insulation from chemical attack of acids, alkalis and solvents. CP-9 is fire resistant and U.V. stable.

USES:
Childers AK-CRYL CP-9 Weather Barrier Coating provides weatherproofing and mechanical protection of thermal insulation both outdoors and indoors, in hot, cold and dual-temperature service. Because it is a ‘breather’ coating (vapors under pressure will pass through it), it should only be used over insulations in low temperature, or dual-temperature service when the insulations themselves are vapor barriers, or where a complete vapor barrier system is applied to the insulated surface either before or after the coating is applied.

COLOR:
White

SERVICE TEMPERATURE RANGE:
-40ºF to 180ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch - 2-4 hours
Through - 24-36 hours

COVERAGE:
6 U.S. gal./100 sf

CLEAN-UP:
Warm, soapy water (wet), xylol (dry)

WATER VAPOR PERMEANCE ASTM E-96
Greater than 1.0 perms (Procedure B) at 1/16” film thickness.

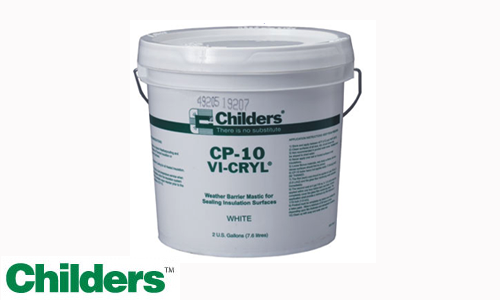

CHILDERS CP-10 VI-CRYL MASTIC COATING
(Trowel Grade)

DESCRIPTION:
Childers VI-CRYL CP-10 weather barrier coating is a tough, durable, and fire-resistive water based mastic for most types of thermal insulation and finishing and insulating cements. It is very thixotropic - it looks heavy but spreads easily. It is available in a variety of standard and special faderesistant colors. It is outdoor rated and U.V. resistant.

USES:
VI-CRYL CP-10 weather barrier coating is unsurpassed for the mechanical protection and weatherproofing of thermal insulations both outdoors and indoors, in hot, cold, and dual-temperature service. However, since it is a ‘breathing’ coating (vapors under pressure will pass through it) it should only be used over insulations in lowtemperature, or dual-temperature service when the insulations themselves are vapor barriers. VI-CRYL CP-10 has also found use throughout the thermal insulation industry as a coating used over closed cell polyethylene and polyurethane foam insulations. Industry experience has demonstrated that all weather barrier coatings may blister when applied over polystyrene board. This effect may be limited by the use of white colored coatings. VI-CRYL CP-10 weather barrier coating in its Metallic Gray color is the ideal companion product to Aluminum and Stainless Steel Jacketing.

COLORS:
White
Metallic Gray
Black

SERVICE TEMPERATURE RANGE:
-40ºF to 180ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch - 2-4 hours
Through - 24-36 hours

COVERAGE:
6 U.S. gal./100 sf

CLEAN-UP:
Warm, soapy water (wet) xylol (dry)

WATER VAPOR PERMEANCE ASTM E-96
Greater than 1.0 perm for 1/16 inch dry film. (Procedure B)




CHILDERS CP-11 VI-CRYL MASTIC COATING
(Brush Grade)

DESCRIPTION:
Childers' VI-CRYL CP-11 weather barrier coating is a tough, durable, and fire-resistive water based mastic for most types of thermal insulation and finishing and insulating cements. It is very thixotropic - it looks heavy but spreads easily. It is available in a variety of standard and special fade resistant colors. It is outdoor rated and U.V. resistant.

USES:
VI-CRYL CP-11 weather barrier coating is unsurpassed for the mechanical protection and weatherproofing of thermal insulations both outdoors and indoors, in hot, cold, and dual-temperature service. However, since it is a ‘breathing’ coating (vapors under pressure will pass through it) it should only be used over insulations in lowtemperature, or dual-temperature service when the insulations themselves are vapor barriers. VI-CRYL CP-11 has also found use throughout the thermal insulation industry as a coating used over closed cell polyethylene and polyurethane foam insulations. Industry experience has demonstrated that all weather barrier coatings may blister when applied over polystyrene board. This effect may be limited by the use of white colored coatings.

*VI-CRYL CP-11 weather barrier coating in its Metallic Gray color is the ideal companion product to Aluminum and Stainless Steel Jacketing.

COLORS:
White
Metallic Gray
Black

SERVICE TEMPERATURE RANGE:
-40ºF to 180ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch - 2-4 hours
Through - 24-36 hours

COVERAGE:
6 U.S. gal./100 sf

CLEAN-UP:
Warm, soapy water (wet) xylol (dry)

WATER VAPOR PERMEANCE ASTM E-96
Greater than 1.0 perm for 1/16 inch dry film. (Procedure B)



CHILDERS CP-22 / CP-24 CHIL-PRUF
ASPHALT BASED FIBRATED CUTBACK VAPOR BARRIER AND WEATHER BARRIER INSULATION COATING

DESCRIPTION:
Childers CHIL-PRUF CP-22/24 is an effective asphalt based cutback fibrated vapor barrier coating for use over insulations on piping and equipment operating at low to moderately high temperatures. Properly applied, CHIL-PRUF vapor barrier coating provides protection against atmospheric corrosives, chemical dusts, fumes, fogs, and moisture. The cured coating forms a highly impermeable, tough, durable, and well-bonded finish.

USES:
Childers CHIL-PRUF CP-22/24 vapor barrier coating has a broad application range as a vapor and weather barrier over many types of insulations, including fibrous glass, polyurethane foams, glass foams, and other low temperature insulation materials. It is not to be used with polystyrene foam insulation. CHIL-PRUF vapor barrier coating is recommended for use in cold and dual temperature service. As a vapor barrier coating, it is used to protect insulation over fittings, piping, tanks and tank heads, process vessels, and equipment. CHIL-PRUF vapor barrier coating also provides protection for insulation applied on underground pipelines.

PRODUCT GRADES:
CP-22 Trowel Grade
CP-24 Heavy Duty Airless Spray Grade

COLOR:
Black

SERVICE TEMPERATURE RANGE:
-60ºF to 325ºF

APPLICATION TEMPERATURE RANGE:
50ºF to 100ºF

DRYING TIME:
To Touch--2 Hours
Through--24 Hours

COVERAGE:
Varies with substrate and membrane.
9.7-12.7 U.S. gal./100 sf

CLEAN-UP:
Mineral spirits (flammable), chlorinated solvent (non-flammable)

WATER VAPOR PERMEABILITY (ASTM -E96)
0.02 to .03 perms (Procedure E)
@ .094”  thickness


SURFACE BURNING CHARACTERISTICS:
(ASTM E-84, Tunnel Test)
Surface: Inorganic reinforced cement board
Flame Spread Index: 150



CHILDERS CP-25 CHIL-BRATE
WATER BASED FIBRATED ASPHALT EMULSION WEATHER BARRIER
INSULATION COATING

DESCRIPTION:
Childers CHIL-BRATE CP-25 is a water based fire retardant fibrated asphalt emulsion weather barrier coating for use over insulations on above ground installations operating at moderate to high temperature service.  Since it is a “breathing” coating, vapors under pressure will pass through it. When dry, the film is tough and durable. It provides protection against atmospheric corrosives, chemical liquids, and fumes.

USES:
Childers CHIL-BRATE CP-25 weather barrier coating is primarily designed to protect insulation on equipment and structures in high temperature service, although it also provides protection against corrosion when applied directly over steel and concrete. Typical insulations protected with CHIL-BRATE weather barrier coating include calcium silicate, mineral and glass fibers, polyurethane, and foamglas.

COLOR:
Black

SERVICE TEMPERATURE RANGE:
-20ºF to 200ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
24-48 hours

COVERAGE:
15 gallons per 100 sf

CLEAN-UP:
Clean water, followed by mineral spirits.



CHILDERS CP-30 CHIL-PERM LO
LOW ODER VAPOR BARRIER COATING FOR INDOOR APPLICATIONS

DESCRIPTION:
Childers CHIL-PERM CP-30 LO is an extremely effective vapor barrier coating for all low temperature applications. In the wet state, it has an unusual consistency which allows it to be buttered-on in relatively heavy films, or it can be brushed out into thin films. It is made with an elastomeric resin which yields a tough, yet flexible, dry film with excellent adhesive properties.

USES:
Childers CHIL-PERM CP-30 LO Vapor Barrier Coating, in the dry state, is a fire resistive, flexible coating for all types of thermal insulations in cold and dual temperature service. As an indoor vapor barrier coating, it is used to vapor seal fittings, piping, and equipment insulated with fibrous glass, polyurethane foams, and other low temperature insulation materials. It is not to be used in direct contact with polystyrene foams. CP-30 LO coating is used as a barrier at the butt joints of pipe and block insulation where intermediate vapor stops are required. CP-30 LO coating is also used to seal the joints of foil-faced boards and other factory vapor sealed insulation material, and also where pins and staples puncture insulation vapor barrier facings.

COLOR:
White

SERVICE TEMPERATURE RANGE:
-40ºF to 190ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
To Touch–8 hours
Through–24-36 hours

FLASH POINT:
107ºF

COVERAGE:
4 U.S. Gals./100 sf

CLEAN-UP:
Non-flammable–Chlorinated Solvents Flammable–Xylene

WATER VAPOR PERMEANCE (ASTM E-96):
ASTM E-96 Procedure B, Less than 0.02 perms at 0.02 inch film thickness.



CHILDERS CP-34 VAPOR RETARDANT COATING

DESCRIPTION:
Childers CP-34 is a water based vapor retarder coating for use over many types of thermal insulation including polystyrene foam. It is ideal for use over ASJ, FRK and FSK jackets and board facings to provide a vapor retarding seal at joints, laps and weld pin punctures.
CP-34 is formulated for indoor and outdoor commercial use. It has a mild latex “paint type” odor and is designed for use on pipes, vessels, ducts and equipment operating between 32°F (0°C) and ambient temperatures.  CP-34 has a WVTR rating in the range of other competitive water based vapor barrier coatings. For heavier duty commercial or industrial use select Childers CP-35.

COLOR:
White

SERVICE TEMPERATURE LIMITS:
-20°F to 180°F

DRYING TIME:
To Touch – 4 hours
Through – 24 hours

COVERAGE:
4 gallons/100 sf

WATER VAPOR PERMEANCE:
ASTM F 1249, 0.08 perms at 45 mils dry. Tested at 100°F and 50% RH.

WET FLAMMABILITY (ASTM D3278)
Flash Point: None to boiling, 212°F



CHILDERS CP-35 CHIL-PERM WB
INDOOR & OUTDOOR WATER BASED VAPOR RETARDER COATING

DESCRIPTION:
Childers CHIL-PERM WB CP-35 is an effective, high performance, water based, vapor retarder coating designed for all interior and exterior, low temperature and some dual temperature applications. It is fast drying and forms a tough, flexible dry film which retards the flow of vapor through an insulation system. It looks heavy, but  spreads easily. It can be applied in a relatively heavy film or brushed out into a thin, smooth film.

USES:
Childers CHIL-PERM WB CP-35 is effective on all types of thermal insulations in both cold and dual temperature service. As a vapor retarder coating, it is safely used to vapor seal fittings, piping, and equipment insulated with mineral fiber, cellular glass, polyisocyanurate, polyurethane, polystyrene, phenolic, and even open cell polyethylene foams. It may also be used to seal the joints of foil-faced boards and other factory vapor sealed insulation materials, (test before using for this application) as well as to seal punctures from pins and staples in vapor barrier facing materials.

COLOR:
White

SERVICE TEMPERATURE RANGE:
-20ºF to 190ºF

APPLICATION & STORAGE TEMPERATURE RANGE:
50ºF to 100ºF

DRYING TIME:
To Touch--3 Hours
Through--24-36 Hours

COVERAGE:
4 to 6 U.S. gal./100 sf

CLEAN-UP:
Warm, soapy water while coating is still wet.

WATER VAPOR PERMEANCE ASTM F-1249
0.09 Perms (0.06 metric perms) @ 55 mils Dry film thickness. Tested at 73ºF, 50% RH

SURFACE BURNING CHARACTERISTICS ASTM E-84
Flame Spread 0
Smoke Developed 0



FO

CHILDERS CP-40 ENCACEL X
VAPOR BARRIER AND WEATHERPROOFING COATING FOR INTERIOR AND EXTERIOR APPLICATIONS


DESCRIPTION:
Childers ENCACEL X CP-40 is an elastomeric polymer-based coating designed for the protection of thermal insulation. ENCACEL X CP-40 Vapor Barrier Coating has good vapor barrier properties as well as excellent resistance to chemicals, low temperature flexibility, and superior adhesive characteristics.

USES:
Childers ENCACEL X CP-40 Vapor Barrier Coating provides a tough, flexible, fire-resistant finish. It is recommended for hot and cold exterior applications where the chemical environment necessitates additional protection.  It is not to be used in direct contact with polystyrene foam insulation. It may be used with most other types of insulation.

COLOR:
CP-40 White, Trowel/Glove
CP-40-1 Gray, Trowel/Glove

SERVICE TEMPERATURE RANGE:
-50ºF to 220ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch–5 hours
Through–48 hours

COVERAGE:
5 gal./100 sf

CLEAN-UP:
Xylene

WATER VAPOR PERMEANCE:
ASTM F 1249, 0.03 perms at 30 mils dry. Tested at 100ºF and 90% RH.



FO

CHILDERS CP-45 ENCACEL V
VAPOR BARRIER AND WEATHERPROOFING COATING FOR INTERIOR AND EXTERIOR APPLICATIONS

DESCRIPTION:
Childers ENCACEL V, CP-45, is an elastomeric polymer-based vapor barrier and weatherproof coating designed for the protection of sprayed, board and block type insulation. ENCACEL V Vapor Barrier Coating has outstanding adhesive properties and excellent flexibility, in addition to its superior vapor barrier characteristics.

USES:

CP-45 is a finish for all cold insulation systems. It is also recommended for hot exterior sprayed polyurethane applications. In both cases, ENCACEL V Vapor Barrier Coating is used as the finish coat after flashing and sealing all metal protrusions throughout the surface of the insulation.  ENCACEL V Vapor Barrier Coating can be used as a decorative finish over closed-cell flexible cellular plastics. Care must be taken that the adhesive bonded joint is not adversely affected by the solvent in the vapor barrier.  It is not to be used in direct contact with polystyrene foam insulation.

COLOR:
CP-45 White, Spray/Brush
CP-45-1 Gray, Spray/Brush

SERVICE TEMPERATURE RANGE:
-50ºF to 220ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch–3-4 hours
Through–24 hours

COVERAGE:
6 gal./100 sf

CLEAN-UP:
Xylene or Clorinated solvent
(Dried Encacel is extremely difficult to remove.)

WATER VAPOR PERMEANCE:
ASTM E 96, Method E, 0.025 perms
(0.016 metric perms) at 51 mils dry
ASTM E-96 Procedure A, 0.018 perms at 26 mils dry
ASTM F 1249, 0.05 perms at 30 mils dry. Tested at 100ºF and 90% RH.



FO

CHILDERS CP-50A MV1 CHIL-SEAL
COMBINATION COATING AND ADHESIVE FOR FINISHING AND ADHERING CANVAS AND OTHER LAGGING CLOTHS OVER THERMAL INSULATION

DESCRIPTION:
Childers CHIL-SEAL CP-50A MV1 Coating is a white coating which is also an excellent adhesive. It brushes easily and yet forms a tough film even over surfaces such as glass cloth or canvas. Being a water based material, it is safe to use; it does not attack plastic foams or other adhesives. Brushes and tools are easily cleaned with water. CHILSEAL CP-50A MV1 Coating is fire resistive. It is also available in Marine Grade (CP-50A HV2 Coating), which meets MIL-A-3316 specification and USCG 164.012.

USES:
CHIL-SEAL CP-50A MV1 Coating is used for adhering fabrics such as
glass cloth, canvas (up to 8 oz.) and brattice cloth to many insulated
surfaces such as round and rectangular duct work and equipment. It is also used for adhering the laps of these fabrics as well as some woven glass cloths on pipe insulation. CHIL-SEAL CP-50A MV1 Coating is used as a coating over all of the above mentioned fabrics and also finds use as a coating over plastic foam materials such as polystyrene. CHIL-SEAL CP-50A MV1 Coating can be brushed on the joints of duct liner insulation to help prevent air erosion of the glass fiber.

COLOR:
White

SERVICE TEMPERATURE RANGE:
-20ºF to 180ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
To Touch–3 hours
Through -12 to 36 hours

COVERAGE:
1.0-1.25 U.S. Gal./100 sf per coat on canvas.
1.25-2.50 U.S. Gal./100 sf per coat on brattice cloth.
1.0 U.S. Gal./100 sf per coat on smooth dense surfaces.

CLEAN-UP:
Warm, soapy water (wet) Mineral Spirits (dry)

WATER VAPOR PERMEANCE:
ASTM F 1249, 0.07 perms at 27 mils dry. Tested at 100ºF  and 90% RH.

SURFACE BURNING CHARACTERISTICS (ASTM E-84, U.L.
TUNNEL TEST)
Flame Spread 10
Smoke Develop 0



FO

CHILDERS CP-50A HV2 CHIL-SEAL
HIGH VISCOSITY COATING AND ADHESIVE FOR FINISHING AND ADHERING CANVAS AND OTHER LAGGING CLOTHS OVER THERMAL INSULATION

Meets Military Specification MIL-A-3316C, Class 1, Grade A

DESCRIPTION:
Childers CHIL-SEAL CP-50A HV2 Coating is a high viscosity white coating of heavy cream-like consistency which is also an excellent adhesive. It brushes easily and yet forms a tough film even over surfaces such as glass cloth or canvas. Being a water based material, it is safe to use; it does not attack plastic foams or other adhesives. Brushes and tools are easily cleaned with water.

USES:

CHIL-SEAL CP-50A HV2 coating is used for adhering fabrics such as glass cloth, canvas (up to 8 oz.) and brattice cloth to many insulated surfaces such as round and rectangular duct work and equipment. It is also used for adhering the laps of these fabrics as well as some woven glass cloths on pipe insulation.  CHIL-SEAL CP-50A HV2 Coating is used as a coating over all of the above mentioned fabrics and also finds use as a coating over plastic foam materials such as polystyrene. CHIL-SEAL CP-50A HV2 Coating can be brushed on the joints of duct liner insulation to help prevent air erosion of the glass fiber.

COLORS:
White

SERVICE TEMPERATURE RANGE:
-20ºF to 180ºF

APPLICATION TEMPERATURE RANGE:
40ºF to 100ºF

DRYING TIME:
Touch—2 Hours
Through —12 to 36 Hours

COVERAGE:
1.0-1.25 U.S. Gal./100 sf per coat on canvas.
1.25-2.50 U.S. Gal./100 sf per coat on brattice cloth.
1.0 U.S. Gal./100 sf per coat on smooth dense surfaces.

CLEAN-UP:
Warm, soapy water (wet) Mineral Spirits (dry)

WATER VAPOR PERMEANCE ASTM E-96
1.0 perms (Procedure B)
