INSULATION CLADDING SYSTEMS

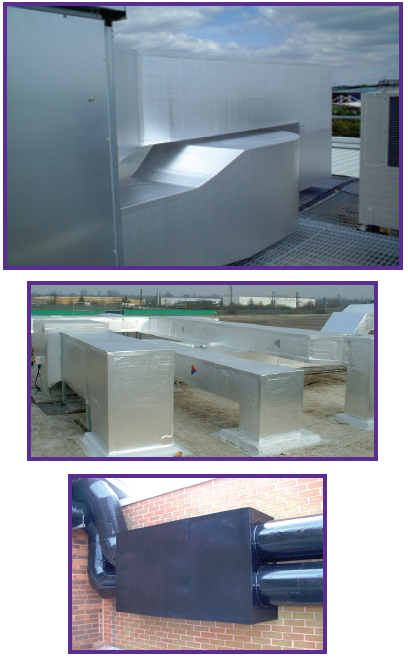

PROVIDES WEATHER AND UV PROTECTION TO BOTH HVAC DUCTWORK AND EXTERIOR PIPING
|
|
|
FLEX CLAD 250/400 CLAD JACKETING SYSTEMS
|
|
DESCRIPTION:
FlexClad-250 is a 25 mil, pre-fabricated self-adhering, sheet-type protective membrane. The outer layer is an embossed, UV-resistant aluminum weathering surface. Under the aluminum are multiple layers of tough, high-density cross-linked polymer film. Under the polymer film is a uniform layer of aggressive rubberized asphalt adhesive which sticks directly to metal, insulation facers and most other clean, dry surfaces. The self-adhesive surface is protected by a disposable release liner.
|
|
|
RECOMMENDED USES:
FlexClad-250 can be applied over rigid board insulation, cold pipes, plenums, storage tanks, iron, copper, steel, PVC, CPVC and concrete. The product weatherproofs, resists water leaks and vapor transmission, preserves the efficiency of thermal insulation and reflects sunlight to reduce interior temperatures. FlexClad-250 is designed for exterior, interior or sub-grade use and it may be used in direct burial applications.
|
|
|
ADVANTAGES:
- Self-stick application saves time, labor, materials, and
- Seals at laps; resists moisture; protects insulation
- Self-seals around fasteners
- Lightweight—does not need pins on smaller ducts
- Sticks in cool weather
FLEXCLAD 250 DATASHEET
FLEXCLAD 400 DATASHEET
|
|
|
|
|
|
VENTURE TAPE
VENTURECLAD 1577CW JACKETING SYSTEM
VentureClad 1577CW is a zero permeability, absolute vapor barrier for insulation cladding and jacketing applications. A 5-ply, self adhesive material installs quickly and easily with no special tools required, resulting in significant time, labor, and cost savings.
VentureClad 1577CW exceeds most building code requirements and can be used for new construction as well as repair on existing structures.
VentureClad 1577CW is the highest performing, highest value product on the market today.
VENTURECLAD DATASHEET
|
|
|
|
|
|
IDEAL SEAL 777
INSULATION CLADDING SYSTEM
Ideal Seal 777 Jacketing system is a high performance 6-ply laminate that provides a total vapor barrier and complete moisture protection for insulation cladding and jacketing applications.
The IdealSeal 777 Jacketing system delivers reliable performace in both indoor and outdoor new construction and retrofit applications. Our unique design offers easy installation and repositioning. Ideal Seal 777 is a performance system that delivers savings in time, labor, and costs.
|
- Ideal for new construction and retrofit jobs. IdealSeal 777 provides the contractor with the perfect choice for jacketing and cladding applications on new construction and retrofit jobs.
- High performance Cold Seal Acrylic Adhesive - Provides a secure bond for a quality installation.
- 10 Warranty without Paint
- "Shop in a Box" - Included in the "shop in a box" is everything else that you will need for the installation: the carton doubles as a dispenser and inside every box is a tool kit that includes two clamps, a straight edge, measuring tape, pencil, knife, squeegee, and stretch out guide for pipe covering
- Can be used in applications from as low as -20º fahrenheit to temperatures as high as 150º fahrenheit
- 8.5 mils thick and 30% stronger than the competition
- Functions as a non-permeable vapor barrier - assures integrity of the insulation system.
- Exceeds UL 723 requirements for Flame Spread and Smoke Developed Mold Resistant
- Available in three finishes: low-glare embossed aluminum, smooth aluminum and white - featuring Cool Roof™ technology
|
|
|
|
