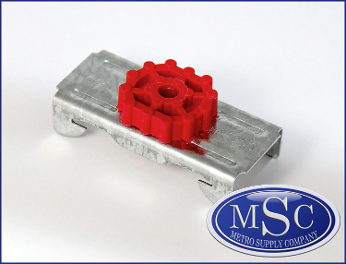

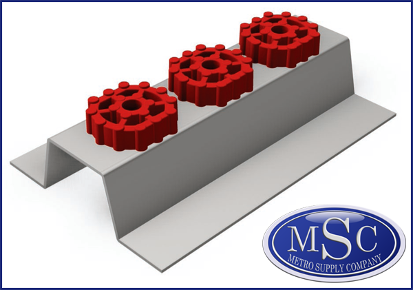

RESILMOUNT A237R ISOLATION CLIPS

Resilmount A237R isolation clips are an engineered, patented acoustic resilient mounting bracket for furring channels, for reducing airborne vibration and structure-borne vibration in wood, steel and concrete wall and ceiling applications.

FEATURES

• Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics.
• A237R clips can be used with any wood, steel, CMU or concrete application.
• A237R clips decouple gypsum board from the structure.
• A237R clips are UL approved in 84 wall and ceiling assemblies.
• Consistent and reliable quality – manufactured under ISO 9001 quality control system.
• Resilmount is the most cost effective way to isolate airborne noise.
• A237R clips can be used to suit 7/8” and 1 1/2” furring channels.
• A237R clips are provided with a 1/4” hole for a variety of fasteners.

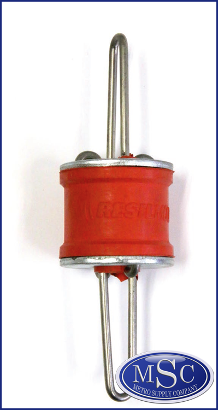

RESILMOUNT A50R-1 HANGER

Resilmount A50R-1 hangers are specifically designed for the support and acoustical isolation of internal suspended ceiling systems.

FEATURES

• Easily works with all hanger wire.
• Easy installation into new or existing ceiling systems.
• Acoustically tested for STC and IIC.
• Does not reduce the load capacity of the ceiling system.
• Suitably isolates the ceiling system from the structure to reduce structure and airborne noise.
• Load capacity: 65 Lbs.*

*Note: Hangers also available with Load Capacities up to 200 Lbs.

The Resilient A50R-1 will deflect 3/16” when loaded to 65lb capacity and maintain optimal sound isolation in accordance with US Standards.

RESILMOUNT A48R MOUNTING BRACKET

Resilmount A48R clips are engineered, acoustic resilient mounting brackets for reducing airborne vibration and structure-borne vibration in internal wall and ceiling applications.

FEATURES

• Unique, patented sound cell design to break up and absorb airborne sound.
• Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics.
• A48R is perfect for decoupling wall systems.
• A48R can be used to decouple almost anything from garage door motors to lockers.
• Resilmount is the most cost effective way to isolate airborne noise.
• Strong ‘column’ design provides minimal contact area with substrate whilst maintaining maximum structural integrity.
• Provided with several 3/16” slotted holes in bracket surface, suitable for direct fastening applications.
• 1/4” hole for most common fittings like 3/16” suspension rod.

The Resilmount A48R right angle bracket can be mounted in several different orientations for a variety of acoustic-sensitive installations. All Resilmount products are precision manufactured for complete control over the quality of each individual mount, in order to meet or exceed the architectural specifications required of each resilient mount. The patented Resilmount rubber insert has been independently tested and approved for use in the USA.

RESILMOUNT A130R MOUNTING BRACKET

The A130R is used as a heavy duty mount and acoustical isolation bracket. It is mounted between the wall and the structure that you are mounting.

FEATURES

• Supplied as fully assembled component – no site assembly required.
• Consistent and reliable quality – manufactured under ISO9001 quality control system.
• Easy installation into new or existing wall systems.
• Suitably isolates the wall system from the structure to reduce structure and airborne noise.
• Acoustical Design Load: 110lbs.
• Designed to fit inside a 6 inch metal track.
• Wider flanges for easier screwing
• Height matches A237R and standard 7/8” furring channel combination.
