UNIFRAX CERAMIC HIGH TEMPERATURE INSULATION PRODUCT LINE

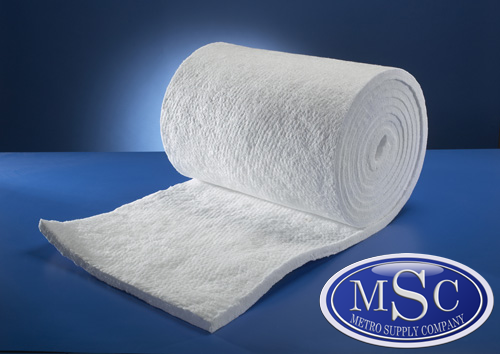

UNIFRAX FIBERFRAX CERAMIC BLANKETS

FIBERFRAX DURABLANKETS:

Durablanket ceramic fiber products are comprised of high strength, needled insulating blankets that are made from spun Fiberfrax ceramic fibers. Fiberfrax Durablanket S insulation, the flagship of the Durablanket product family, is a strong, lightweight, flexible needled blanket that is made from spun ceramic fibers. Available in a wide variety of thicknesses, widths and densities, Durablanket S insulation provides an array of proven solutions for the broadest spectrum of applications.

FIBERFRAX DURABACK:

Fiberfrax Duraback blanket is a strong, lightweight, flexible needled blanket intended for use as a cost-effective back-up insulation for Fiberwall furnace linings. It is recommended for use up to 1800°F. Duraback blanket can be installed up to four times faster than common block-type back-up insulation and is priced competitively with mineral wool block.

FIBERFRAX DURABLANKET 2600:

Fiberfrax Durablanket 2600 insulation is a high temperature version of the Durablanket product line. It is made from high purity alumina, zirconia and silica spun Fiberfrax ceramic fibers. This composition, in combination with a unique manufacturing process, imparts. Durablanket 2600 insulation with extremely low shrinkage characteristics at elevated temperatures.

FIBERFRAX DURABLANKET HP-S:

Fiberfrax Durablanket HP-S insulation is made from spun, high purity Fiberfrax ceramic fibers. Coupled with all of the physical characteristics offered by Durablanket S insulation, the high purity level of Durablanket HP-S insulation makes it especially suitable for those applications requiring high purity fiber chemistry.

FIBERFRAX FIBERMAT:

Fiberfrax Fibermat is a lightweight, high strength needled insulating blanket. The blanket fibers are spun from a ceramic composition having a normal use limit of 760°C (1400°F). Fibermat is completely inorganic and derives its exceptional strength from the needling of long ceramic fibers. It has excellent thermal and acoustical insulating properties.

FIBERFRAX MAT:

Fibermax Mat is a high-temperature, flexible mat product that is lightweight and highly resilient. It is composed entirely of Fibermax polycrystalline mullite fibers to produce a product that is high-temperature (1650°C / 3000°F) resistant and virtually shot free. Fibermax Mat contains no organic binders or other additives which cause outgassing fumes or associated problems. In addition to exhibiting excellent resistance to attack from most corrosive agents (exceptions include hydrofluoric acid, phosphoric acid and strong alkalies), Fibermax fiber also resists oxidation and reduction.

FIBERFRAX PH BLANKET:

Fiberfrax PH Blanket is a unique product that has been specifically designed to provide excellent filtration capabilities in addition to the high chemical stability and low thermal conductivity that is possessed by all Fiberfrax products. PH Blanket is made from Fiberfrax bulk ceramic fibers in a unique wet felting process which removes unfiberized particles. In addition to the strength and resilience afforded by the interlocking of fibers during the manufacturing process, handling strength is further enhanced by the addition of a small amount of organic binder. A typical filtration application would involve utilizing PH Blanket as a platinum catalyst recovery filter in nitric acid production. In this application, PH Blanket offers numerous advantages over glass wool products including longer life, 50-60% improved filter efficiency, reduced chance of blowouts and better temperature resistance. Other typical non-filtration applications include high temperature and acoustical insulation.

INSULFRAX S:

Insulfrax thermal insulation products are based on a calcium, magnesium, silicate chemistry which produces products capable of withstanding continuous operating temperatures up to 1100°C (2012° F). Insulfrax products are designed to have enhanced in-vitro solubility characteristics which enable Insulfrax products to meet European regulatory requirements (Directive 97/69/EC) for man-made vitreous fibers.

ISOFRAX 1260C:

Isofrax 1260C Blanket is the product of a long-term research and development effort by Unifrax to produce an insulating blanket which has the high temperature performance characteristics required in many applications at temperatures up to 2300°F and also meets European regulatory requirements (Directive 97/69/EC).

Isofrax 1260C Blanket has excellent chemical stability and is unaffected by most chemicals except hydrofluoric and phosphoric acids and cencentrated alkalies. If wet by water or steam, thermal and physical properties remain unaffected after drying. Isofrax 1260C Blanket aslo provides superior resistance to attach from molten aluminum alloys at high temperatures.

Isofrax 1260C Blanket is an inorganic, needled insulating blanket which is manufactured using Isofrax 1260C spun fibers. The extra long spun fibers, cross-locked through a unique forming process, produce a blanket with good handling strength. Isofrax 1260C Blanket provides solutions to a variety of heat processing problems.

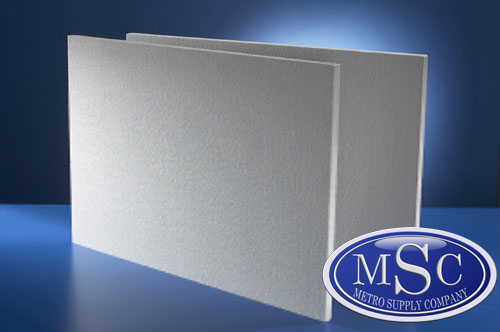

UNIFRAX DURABOARD CERAMIC FIBER BOARD

DURABOARD 1700 & 1800:

Duraboard 1700 and Duraboard 1800 are an extension to the Fibermax® product line. These board products exhibit excellent thermal stability (low shrinkage) at very high operating temperatures. Another benefit of these board products is their extremely high modulus of rupture (MOR) in both the green and fired state. Because of this strength, both Duraboard 1700 and Duraboard 1800 are very well suited for applications where sag resistance is critical. Duraboard 17R and 18R have a rolled finish, while Duraboard 17H and 18H are compressed during manufacturing for optimum density and sanded smooth.

DURABOARD 2600:

Duraboard 2600 insulation is a high-temperature insulating board designed to provide high stability at elevated temperatures. This capability is achieved by manufacturing a board formulated with a blend of Fiberfrax® alumina-silica fibers and Fibermax, Unifrax Corporation’s patented polycrystalline mullite fibers. This unique formulation controls thermal shrinkage to a level less than 1.0% after 168 hours at 2450°F.

DURABOARD 3000:

Duraboard 3000 insulation, the highest temperature rated board manufactured by Unifrax Corporation, provides maximum high-temperature stability and shrinkage resistance. Also, formulated from a blend of Fiberfrax alumina-silica fibers and Fibermax, Unifrax Corporation’s patented polycrystalline mullite fibers, Duraboard 3000 insulation derives its exceptional high-temperature capability from an increased Fibermax fiber concentration in the blend. This unique formulation controls shrinkage to a level of only 1.2% after 168 hours at 1482°C (2700°F).

DURABOARD 350ES & 500ES:

These products use a unique fiber formulation to obtain high strength and machinability not normally achieved in lightweight ceramic fiber board products. The innovative composite binder system using both inorganic and organic components results in a strength-to-weight ratio of more than three times that of standard refractory ceramic fiber boards. Improved physical characteristics of these products allow for easier handling and fabrication.

Duraboard 350ES has more than three times the strength of standard boards of similar densities and thicknesses. Duraboard 500ES has more than four times the strength of standard boards of similar densities and thicknesses.

DURABOARD HD & LD:

Duraboard HD insulation is a high-density board product that offers the same high level of dimensional and surface uniformity as Duraboard LD insulation, but provides enhanced compressive strengh and a higher modulus of rupture. This higher density is achieved through the inclusion of clay additives during the manufacturing process.

Its higher strength makes Duraboard HD insulation particularly well-suited to weight load support applications such as refractory brick backup or for covering larger unsupported spans.

DURABOARD RG:

Duraboard RG (Refractory Grade) insulation is a cost-effective insulating board manufactured with the specific requirements of the refractory industry in mind. It has a rolled, rigidized surface which gives it a high modulus of rupture and compressive strength as well as high abrasion and hot gas erosion resistance.

These properties make Duraboard RG insulation ideally suited for use both as a backup to dense refractories, such as those used in the glass industry, and as a hot face protective layer over blanket linings where the rigidized surface aids in dust suppression during both installation and operation.

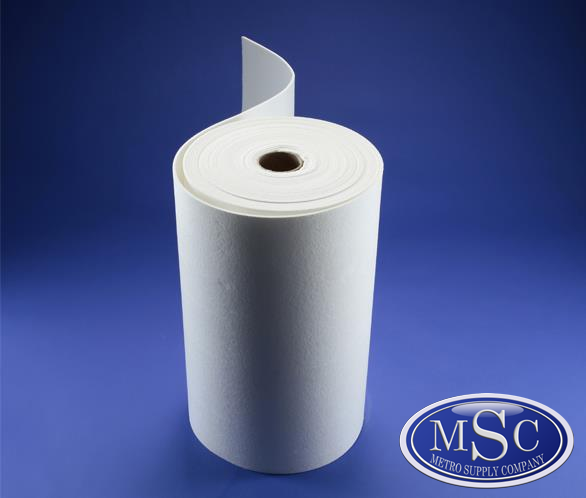

UNIFRAX FIBERFRAX CERAMIC PAPER / FELT

FIBERFRAX LO-CON FELT:

Fiberfrax Lo-Con Felt is a lightweight, flexible batting created from Fiberfrax Bulk ceramic fibers interlocked to form a strong, resilient insulation. It is manufactured by a unique wet felting process which removes unfiberized particles to produce the cleanest, most efficient ceramic fiber felt available. A small amount of non-flaming organic binde is added to provide improved handling properties for easier installation in applications where organic burn-out at low temperatures is acceptable.

FIBERFRAX DURASET FELT:

Fiberfrax Duraset Felt is a lightweight mat made from spun Fiberfrax ceramic fibers which have been impregnated with a thermosetting resin. Supplied in uncured form, it can be formed by the simultaneous application of pressure and heat to achieve complex shapes of rigid consistency for thermal and acoustical shielding. Use of Fiberfrax spun fibers allows for production of parts with severe draws without tearing during the forming process. Duraset felt is an excellent insulator with a very high temperature use limit.

FIBERFRAX CERAMIC PAPER:

Fiberfrax ceramic fiber papers are a unique class of products which consists primarily of an alumino-silicate fiber in a non-woven matrix with a latex binder system.  A specialized paper-making process to form uniform, lightweight, flexible sheets is statistically controlled.  By blending different fibers, binders, and additives while varying the manufacturing process, Unifrax Corporation now produces a variety of Fiberfrax paper products for a wide range of applications. In addition, Unifrax has several manufacturing capabilities which can enhance the performance of Fiberfrax papers in a wide variey of applications.

Fiberfrax ceramic fiber papers are differentiated by thickness, density, fiber index, and chemistry. They are often segmented into three groups:

Utility grades, which include 440 and Rollboard paper, are the most cost-effective products in applications where performance characteristics are less critical.

Standard grades: 550,970, and 880 paper are used where reliability and consistency are important.

Premium grades: 882-H, 972-H, and HSA paper are used either when organic outgassign cannot be tolerated or when thermal performance is critical.

INSULFRAX CERAMIC PAPER:

Insulfrax Paper is an evolutionary product which is manufactured by forming Insulfrax Fiber in a nonwoven matrix. These fibers are randomly oriented during manufacturing and then held in place with a latex binder system. A specialized paper-making process is utilized to form uniform lightweight, flexible materials, including Insulfrax Paper. Insulfrax Fiber, utilized in Insulfrax Paper, is based upon a calcium, magnesium, silicate (CMS) chemistry. This CMS fiber chemistry has been successfully used to solve a variety of application problems from 800°F up to 2012°F. In addition to high temperature resistance, Insulfrax Fiber meets European regulatory requirements (Directive 97/69/EC).

ISOFRAX 1260C PAPER:

Isofrax 1260C Paper is a unique product which is manufactured by forming Isofrax 1260C Fibre in a nonwoven matrix. The fibres are randomly oriented during manufacture, then held in place with a latex binder system. A specialized, statistically controlled paper-making process is utilized to form uniform, lightweight, flexible materials, including Isofrax 1260C Paper. Isofrax 1260C Fibre, the fibre utilized in Isofrax 1260C Paper, is a revolutionary new fibre that utilizes a unique, patented silica-magnesia chemistry to solve a variety of demanding, high-temperature application problems. Isofrax 1260C Fibre is the product of a long-term research and development effort by Unifrax to produce a fibre which has the high temperature performance characteristics required in many applications at temperatures up to 2300ºF and also meets European regulatory requirements (Directive 97/69/EC).

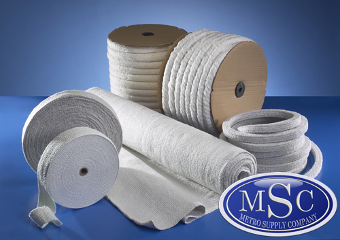

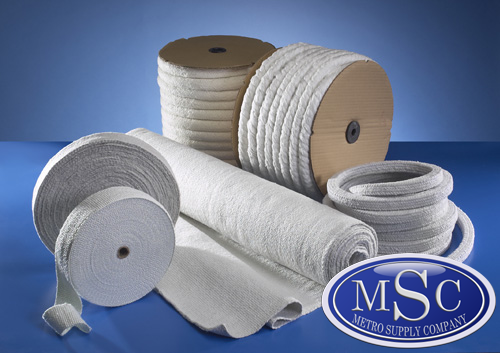

UNIFRAX FIBERFRAX TEXTILES

Fiberfrax braids are used where high density and resistance to compression and mechanical abuse are required, such as in packing applications. Round and square versions are available.

FIBERFRAX DURAPACK ROPE PACKING:

Durapack rope packing is a dense, resilient twisted cord style rope designed for packing applications that have irregular surfaces or openings. This product is plliable and exhibits exceptional sealing capabilities. An inorganic surface coating provides good resistance to mechanical abuse up to 1000°F, enabling Durapack rope to be effective in high temperature seals, packing and gaskets.

Durapack rope packing contains a small amount of organic carrier which will burn out at a low temperature with less than 3% shrinkage. It possesses the same thermal properties and chemical stability common to all Fiberfrax forms, resisting attack from most corrosive agents.

FIBERFRAX CERAMIC ROPE:

Fiberfrax textile products are durable, high temperature, ceramic fiber packing materials that are well-suited for industrial applications. They are noted for their superior insulating and sealing ability to 2300°F. These materials contain approximately 20% organic carrier fiber to facilitate the carding process. The carrier fiber burns out at a low temperature with no effect on the ceramic fiber properties

Fiberfrax ropes are twisted multi-ply ceramic fiber packing manufactured from Fiberfrax wicking. Standard 3-ply rope is a low density, highly compressive product form. HD rope is up to 9-ply and provides increased compression resistance and strength and is approximately 40-65% denser than regular Fiberfrax rope.

FIBERFRAX WICKING:

Fiberfrax wicking is a high temperature twisted roving made from Fiberfrax ceramic fibers and organic carrier fibers. It possesses the same thermal and chemical properties common to all Fiberfrax forms. It is typically used in applications that do not demand high tensile strength or compression resistance.

FIBERFRAX WOVEN TEXTILES (CLOTH / TAPE / YARN / SLEEVING:

The woven textile product family is a unique group of high temperature ceramic fiber fabrics useable in a wide variety of industrial applications with insulating ability to 2300°F. The woven textile product family is composed of three basic product lines: Fiberfrax cloth, tape and sleeving; Fibersil cloth and Flexweave 1000 cloth and tape. Fiberfrax yarn, the core material from which Fiberfrax cloth, tape and sleeving is woven, is also available as a product form.
