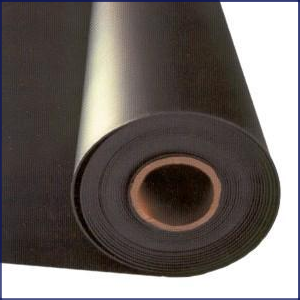

METROFLEX'S MASS LOADED VINYL SOUND BARRIER

MetroFlex Acoustic Barrier is a flexible, non-reinforced mass loaded vinyl that resists the passage of sound waves and reduces the transmission of airborne noise. Metroflex Mass Loaded Vinyl Sound Barrier is 1/8" Thick (1 lb/sf) and has an STC rating of 26 which when installed properly performs simliar to a 2" x 4" wall with 5/8" drywall on each side of the wall.

MetroFlex Mass Loaded Vinyl can provide instant mass with damping to any location and create a sound seal from room to room. In walls, ceilings, floors, on machinery, household appliances, around pipes, exterior fences, doors, as curtains to divide a room or over a window, and so on.

PDF Viewer

MetroFlex Mass Loaded Vinyl Barrier

Black Paper

PHYSICAL PROPERTIES of MF-10

Weight: 1 lb / sq ft
Tensile Strength: 400 psi
Tear Strength: 77 lbs
Thickness: 1/8"
Ultimate Elongation: 200%
Flammability: SE "0" in/min.
Temperature Range: -40°F to 225°F

Note: For best results use MetroFlex Mass Loaded Vinyl in conjunction with Roxul AFB inside the studs or joists.

ACOUSTICAL PROPERTIES

NOISE TRANSMISSION LOSS (dB) / FREQUENCY (Hz)

HERTZ 125 250 500 1000 2000 4000 STC
MF-10 16 17 22 27 31 36 26

*PER ASTM E-90


METROFLEX'S SOUND-PROOFING PIPE AND DUCT WRAP LAG

MetroFlex's MLV Pipe and Duct Wrap Lag is a flexible 1 lb per square foot reinforced foil-faced faced mass loaded vinyl noise barrier. It is typically used to wrap noisy pipes and ducts to block the noise that transmits through the walls of the pipe or duct as air or other contents move through it as well as to increase the sound absorption in the cavity. The reinforced foil-faced exterior serves as a protective jacket for indoor or outdoor applications. It is easy to cut, wrap and install with matching sound seal lag tape.

Black Wrap Paper

Part # MF-10F (Foil only)
Part # MF1-10ALQ (1" Quilted Fiberglass)
Part # MF2-10ALQ (2" Quilted Fiberglass)

PDF Viewer FOIL FACED 1#

PDF Viewer FOIL FACED 2#

Used to wrap noisy pipes, ducts, valves, and fan housings.

Ideal for duct systems running over conference rooms, class rooms, offices, sound studios, and hospital rooms.

PDF Viewer W/ ABSORBER/DECOUPLER


SOUND SEALR ACOUSTIC SOUND BLOCKING SEALANT

MetroFlex Sound SealR Acoustic Sound Blocking Sealant is a high quality latex-based sealing compound used as an essential component in construction assemblies for achieving and maintaining the required STC rating as per IBC 1207.2 for air-borne sound. Sound SealR is specifically formulated for use with MetroFlex Mass Loaded Vinyl and possesses excellent adhesion to drywall, wood, metal, and concrete. It remains permanently flexible and is both durable and long lasting.

APPLICATIONS:

  • Joint seams of Mass Loaded Vinyl
  • Top and bottom runners prior to installation of drywall
  • Outer edge perimeter joints of drywall
  • Cut-outs and utility penetrations

*For use with Mass Loaded Vinyl products, this product should be used in conjunction with MLV SealR Tape.

PDF Viewer

Sealing Compound

Click here to go to the Sound SealR product page


METROFLEX'S MASS LOADED VINYL NAILS

MetroFlex's Mass Loaded Vinyl Nails are the ideal fastener for installing Mass Loaded Vinyl on walls and ceilings. MetroFlex MLV Nails have a large washer head that spreads out the weight of the mass loaded vinyl to help prevent material tearing. (which is common with regular nail/screw heads).

Vinyle Nails

FEATURES:

  • 1-1/2" length
  • Quad-Cut tip helps easily pierce mass loaded vinyl as well as wood (cannot be used on steel studs)
  • 1" diameter head helps spread out the load and prevent material tears
  • Made of high quality galvanized steel
  • Proudly Made In The USA!

Available in 100 packs and 1,000 packs for larger jobs.

Estimated Coverage of 100 pack is 200sf of MLV.


METROFLEX MLV SEALR TAPE

MetroFlex SealR Tape should be applied on all seams between two sections of mass loaded vinyl after MetroFlex Sound SealR Acoustic Sound Sealant is applied to the joint.

MetroFlex SealR Tape is a composite of copolymer film laminated to an interwoven alloy which provides an extremely high tensile strength while maintaining the flexibility of the mass loaded vinyl. The adhesive is a self-curing acrylic which provides a high initial tack when applied to vinyl based products. The adhesive strength increases with time creating an exceptional permanent both with the vinyl.

SealR Tape is used to seal the joints and seams of mass loaded vinyl in various soundproofing applications to ensure a complete and air-tight sound barrier system.

Sealr Tape

Metroflex Sound Seal Sealant
