OWENS CORNING 703 RIGID FIBERGLASS BOARD


PRODUCT DESCRIPTION:
Owens Corning 703 Fiberglass board is made up of inorganic glass fibers that are layered into sheet form and bound with a thermosetting resin binder.  This binder allows the board to be rigid and maintain its shape while still remaining lightweight.  703 Fiberglass board has a product density of 3 pcf (lbs/cf) which is preferred in both the HVAC and Acoustic industries.

DATASHEET:

ACOUSTICAL USE:
Owens Corning 703 Fiberglass board is used in numerous acoustical insulation applications.  At a 2 inch board thickness, Owens Corning 703 boasts an NRC of 1.00 (Noise Reduction Coefficient) and is extremely effective at absorbing mid to high sound frequencies.  When placed around loud machinery, musical instruments, and other airborne noise sources, Owens Corning 703 fiberglass board greatly reduces sound transmission.

Areas of Use for Acoustics:

  • Theaters / Home Theater Rooms
  • Mechanical Rooms / Pump Rooms
  • Churches
  • Gymnasiums
  • Music Studios, Vocal Booths, Recording Rooms, etc.

ACOUSTIC PANELS:
In the music industry, Owens Corning 703 is used as the core insulation absorber for acoustic wall and ceiling panels.  These acoustic panels are usually made with wood/metal frames around the fiberglass board and wrapped with acoustical transparent cloth.  The sound panels are then hung on the walls and ceilings of the room to absorb unwanted sound reflections.  Thicker fiberglass panels may be placed in the corners of the room to absorb lower sound frequencies (bass).

Acoustic Panel Accessory Items:

HVAC USE:
Owens Corning 703 Fiberglass board was designed primarily as an inexpensive and highly effective way to insulate heating and cooling air ducts.  The glass fibers can withstand operating temperatures of 0ºF up to 450ºF which creates a wide arrange of HVAC duct applications.  The rigidity of the board helps resist mechanical abuse and retains its structural integrity offering a crisp finished appearance.

INTERIOR DUCTWORK:  ASJ MAX Jacketing is a reinforced white paper vapor barrier which is used for interior ductwork and matches other mechanical pipe insulation.  ASJ MAX jacket provides a bright and neat appearance and can easily be wiped clean with a damp cloth.  The top polymer coating on the ASJ MAX jacket helps resist water and does not yellow or stain like older version of ASJ.  ASJ MAX is also 80% tougher than the standard All-Service Jacketing (ASJ).

EXTERIOR DUCTWORK: FRK Jacketing is a reinforced foil facing which is used primarily on exterior and rooftop ductwork as a vapor barrier.  The FRK jacketing allows easy adhesion for exterior weather barrier cladding systems such as Ideal Seal 777, Flex Clad, or VentureClad.

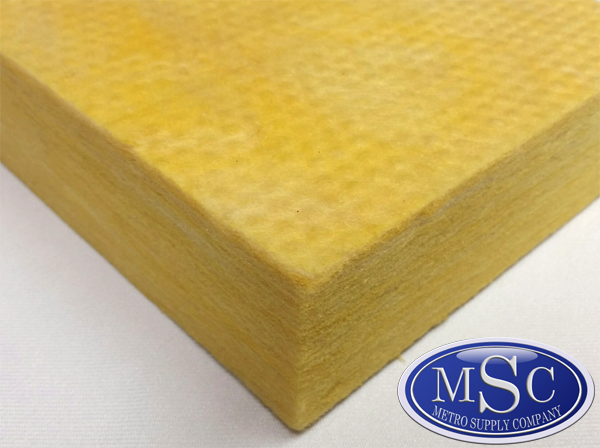

Owens Corning 703 Rigid Fiberglass Board (PLAIN) is used mostly for acoustical insulation applications due to its outstanding sound absorption qualities.

Great for Mid to High Frequency Absorption

2" Thick 703   NRC = 1.00
1" Thick 703   NRC = 0.70

*Available in thicknesses of 1", 2", 4"
*Available in 2ft x 4ft panels & 4ft x 8ft panels

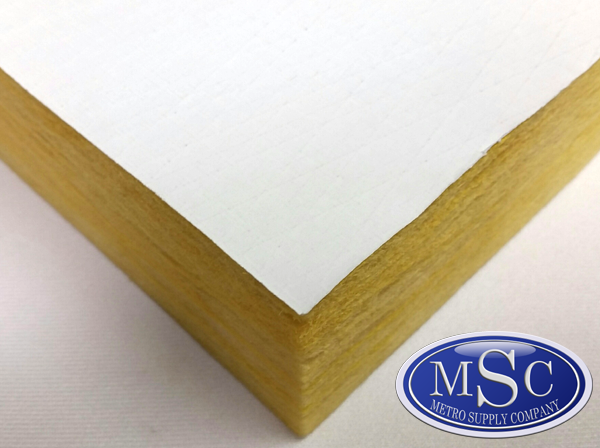

Owens Corning 703 Rigid Fiberglass Board ASJ MAX is used as insulation for interior ductwork.  The ASJ MAX vapor barrier jacket provides a bright and neat appearance which can be wiped clean with a damp cloth.  ASJ MAX jacketing contains a layer of foil on the inside of the paper which reduces the loss of radiant heat from the duct.

  • Top Polymer Coating helps water resistance
  • 80% Tougher than Standard ASJ
  • Does not "yellow" or stain like Standard ASJ

*Available in thicknesses of 1", 1-1/2", 2"
*Available in 2ft x 4ft panels & 4ft x 8ft panels** **(Special Order)

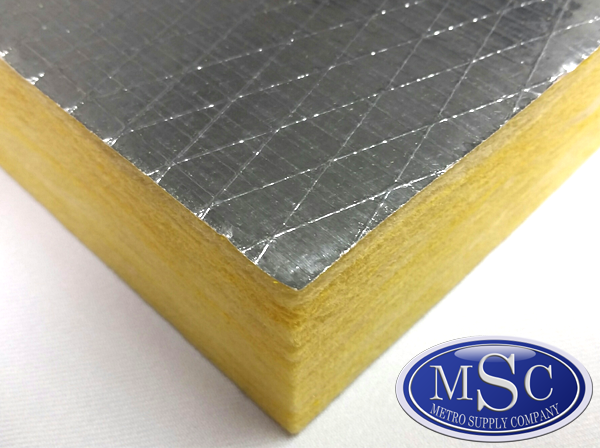

Owens Corning 703 Rigid Fiberglass Board FRK is used as insulation for interior and exterior ductwork.  On rooftop HVAC ductwork, the FRK facing allows easy adhesion for exterior weather barrier cladding systems.  The FRK facing provides a vapor barrier when sealed properly with FRK seam tape.

Available in thicknesses of 1", 1-1/2", 2"
Comes in 24" x 48" panels & 48" x 96" panels**
**(Special Order)


OWENS CORNING ACOUSTICAL INSULATION PRODUCTS:

Owens Corning is the leader in acoustical insulation products mostly due to their 703 Series Fiberglass Acoustic Board which is the premier acoustic panel core material.

703 Acoustic Board is a 3lb/cf fiberglass board used as a core material for acoustical sound panels and baffles due to its excellent sound absorption qualities.  At 2" thick the Noise Reduction Coefficient (NRC) is 1.00
    • Thicknesses: 1", 2", 4"
  • Dimensions: 24" x 48" or  48" x 96"

more

705 Acoustic Board is a 6 lb/cf fiberglass board which is extremely rigid and can be used as a frameless acoustic panel or as a core for acoustic panels where durability is required (gymnasiums, classrooms, etc)
    • Thickness: 2" (stock)
  • Dimension: 24" x 48" (stock)

more

  Owens Corning 703 Acoustic Board
  Owens Corning 705 Acoustic Board
  Owens Corning Select Sound Black Board
  Owens Corning QuietZone Floor Underlayment



Owens Corning - "The Leader in Acoustic Insulation Products"

Select Sound Black Acoustic Board is a black acoustical board that has a durable mat facing.  The major selling point for this product is that it is the only fiberglass board that can be left exposed.  Great product for theaters, bars, nightclubs, etc.

Thickness: 1" or 2"   Dimensions: 48" x 96"

more

QuietZone Floor Mat is a floor underlayment which prevents sound transmission through the floor/ceiling structure.  QuietZone is great at stopping footnoise and subfloor squeaks.

Roll Size: 48" x 35ft (140 sf/roll)

more
