UNIFRAX FYREWRAP INSULATION
PROVIDES "PASSIVE FIRE PROTECTION" UP TO 2300°F


GREASE EXHAUST
DUCTWORK

PLENUM COMBUSTIBLES

LAUNDRY DRYER EXHAUST

AIR VENTILATION
DUCTWORK

FYREWRAP ELITE 1.5

PLENUM WRAP 0.5 FYREWRAP DPS FYREWRAP ELITE 1.5 ADS




UNIFRAX FYREWRAP ELITE 1.5 GREASE DUCT INSULATION ASTM E-2336

DOUBLE LAYER APPLICATIONS

Unifrax’s FyreWrap Elite 1.5 Duct Insulation is a two-layer flexible enclosure for one- and two-hour rated commercial kitchen grease ducts and hazardous exhaust ducts including chemical fume ducts.

FyreWrap Elite 1.5 Duct Insulation is tested per ASTM E-2336 and is acceptable as an alternate to a traditional fire-rated shaft. Installed as a two-layer system, FyreWrap Elite 1.5 complies with AC101 and the 2006 Edition of the International Mechanical Code (IMC).

Product Composition:

Core Material: FyreWrap Elite 1.5 incorporates Insulfrax Thermal Insulation as its core material. Insulfrax is a high-temperature insulation made from a calcia, magnesia, silica chemistry designed to enhance biosolubility. It provides excellent insulation in a noncombustible blanket product form.

Encapsulating Material: The core insulation blanket is completely encapsulated in an aluminum foil fiberglass reinforced scrim covering. This scrim provides additional handling strength as well as protection from moisture absorption and tearing.

Features of FyreWrap 1.5 Grease Duct Insulation - Double Layer:

  • Complies with 2006 IMC and UMC
  • Tested per ASTM E-2336
  • Two-layer system; first and second layers utilizes butt joint only (no overlaps)
  • High-temperature, biosoluble insulation
  • Zero clearance to combustibles, at any location
  • 2-hour fire endurance rating
  • Alternate to shaft enclosure
  • GREENGUARD listed for Microbial Resistance

FyreWrap products offer solutions in applications such as:

  • Grease, HVAC Ducts
  • Railroad Tank Cars
  • Cable Trays, Conduit
  • Transit Cars
  • Control System Covers
  • Ships
  • Above Ground Storage Tanks
  • Expansion Joints
  • Marine Bulkheads, Decks
  • Fire Door Seals
  • Structural Steel
  • Chimney Liners
  • Construction Joints
  • Ceiling Air Diffusers
  • Curtain Walls/Safing
  • Hazardous Material Containers

BASIC INSTALLATION:
The FyreWrap Elite 1.5 Duct Insulation ASTM E-2336 System consists of a two-layer system applied directly to the duct surface. The FyreWrap Elite 1.5 insulation system may be installed at zero clearance to combustibles at any point. Install both layers of wrap with transverse (perimeter) and longitudinal butted joints. Between the first and second layers of wrap stagger transverse joints and offset longitudinal joints to different corners. All visually exposed blanket edges are to be sealed with minimum 3" wide aluminum foil tape and the use of filament tape is not required but is permitted to ease installation.

Typical Product Properties:

Intertek Laboratories (OPL) Listed


ASTM E-2336 (AC101)

ASTM E-2336-  Internal Grease Duct Test


ASTM E-119 Full Scale Engulfment Test

ASTM E-119 Vertical Wall Test

ASTM E-84/UL 723 Surface Burning
           Flame Spread/Smoke Developed Rating:

ASTM E-814 Firestop Test

ASTM E-136 Non-Combustibility Test

ASTM C-518 Durability Test

ASTM C-518 Thermal Resistance

ASTM D-6329-03 Microbial Resistance

File 14870, Design No. UNI/FRD 120-05, UNI/FRD 120-17, UNI/FRD 120-16

Passes

Zero Clearance to Combustibles at all
locations on wrap

2-hour Fire Resistance Rating

2-hour Fire Resistance Rating

        Unfaced       /         Encapsulated
   Zero/Zero                    <25/<50

1- and 2-hour Fire Resistance Ratings

Passes

Passes

R Value = 6.19 (4.13 per inch)

Resistant to Mold Growth

UNIFRAX FYREWRAP ELITE 1.5 KITCHEN GREASE DUCT EXHAUST INSTALLATION INSTRUCTIONS





UNIFRAX FYREWRAP 0.5 PLENUM WRAP INSULATION

Unifrax FyreWrap 0.5 Plenum Insulation is a high temperature insulation blanket specifically designed to provide a single layer, flexible enclosure around combustible items located within fire-rated return air plenums.

New construction, building renovations or modifications to the electrical and mechanical systems may result in the installation of plastic pipe or plastic-coated cables that cannot meet the minimum combustibility requirements defined in the Mechanical Code.

FyreWrap 0.5 Plenum Insulation provides fire protection for these installed items by preventing flame propagation and smoke development in the plenum area.

FyreWrap Plenum Insulation incorporates Insulfrax Thermal Insulation as its core material. Insulfrax is a high temperature insulation made from a calcia, magnesia, silica chemistry designed to enhance biosolubility.  It provides excellent insulation in a noncombustible blanket product form.

The core insulation blanket is completely encapsulated in an aluminum foil fiberglass reinforced scrim covering. This scrim provides additional handling strength as well as protection from moisture absorption and tearing.

APPLICATIONS:

Provides Passive Fire Protection for Combustible Materials Inside Air Plenums (Including above drop-ceiling return air)  The following items are common combustibles that may be installed inside plenums:

  • PVC Piping (Drain Lines / Bathroom Exhaust
  • Internet/Ethernet with plastic coated wiring
  • Electrical Wiring (Romex)
  • Plastic Electrical Conduit

INSTALLATION METHOD:

  • FyreWrap 0.5 Plenum Insulation consists of a single layer system applied directly on to the surface of the combustible item.

  • Cut the insulation to a length sufficient to wrap around the combustible item(s) plus provide a minimum 1" perimeter overlap.

  • Seal all cut edges with aluminum foil tape to ensure there is no exposed fiber.

  • Cut the adjacent piece of Plenum Insulation long enough to wrap around the circumference of the item plus a 1" perimeter overlap.  This piece shall also be installed with a minimum 1" longitudinal overlap on to the previously installed piece.

  • Stainless steel tie wire or ½” stainless steel banding should be utilized as a permanent attachment. Locate the wire or banding ½” from the blanket edge and on 11½” centers.

  • Twist tension the wire or tighten banding to firmly hold the wrap system in place, but not so tight as to cut or damage the blanket.  Hand tightening of wire is adequate.

TYPICAL PRODUCT PROPERTIES

TEST CRITERIA

UL 1887


ASTM E-84/UL 723


ASTM C 518

EN 1094

Code Compliance

DESCRIPTION

Plastic Sprinkler Pipe for Visible Flame and Smoke Characteristics

Encapsulated: Flame <25, Smoke <50
Unfaced: Flame = 0, Smoke = 0

R-Value: 0.5 (1/2”) = 2.0

Temperature Grade 2300°F
Recommended Operating Temperature 2012°F

Complies with 2006-2012 IMC Editions Sect. 602.21




UNIFRAX FYREWRAP DPS DRYER & PLENUM SYSTEMS

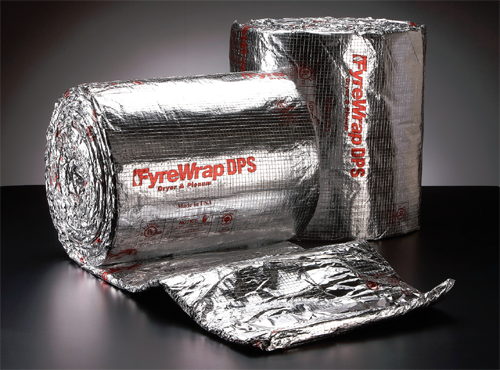

Unifrax FyreWrap DPS Insulation is a high-temperature insulation blanket specifically designed, UL tested and certified to provide a single layer, one-hour rated flexible enclosure around dryer and residential kitchen exhaust ductwork.

The product also provides code compliant fire protection for combustible items, such as plastic pipes by preventing flame propagation and smoke development in the plenum area.

DRYER EXHAUST APPLICATIONS:

FyreWrap DPS is a new and innovative product that provides a safe and cost-effective means to achieve a one-hour fire resistance rated zero clear ance enclosure for routing dryer ductwork, from start to finish, through rated wood truss/joist construction as pre scribed by the International Building and Mechanical Codes.


PLENUM APPLICATIONS:
New construction, building renovations or modifications to the electrical and mechanical systems may result in the installation of plastic pipe or plastic-coated cables that cannot meet the minimum combustibility requirements defined in the Mechanical Code. FyreWrap DPS provides protection to these items by acting as a tested noncombustible enclosure.

FyreWrap DPS Insulation offers the following product features:

  • Lightweight, flexible product form
  • Scrim encapsulated
  • Easy to cut, fabricate, wrap around ducts, pipes or cables
  • Thin, single-layer design
  • High-temperature, low biopersistance fiber


UNIFRAX FYREWRAP ELITE 1.5 AIR DISTRUBTION SYSTEMS

Unifrax FyreWrap Elite 1.5 Duct Insulation is a singlelayer flexible duct wrap enclosure for 1- and 2-hour fire-rated air distribution systems (ADS ducts). Typical duct types include smoke control, stairwell and vestibule pressurization, ventilation, supply/return ducts, commercial dryer exhaust, as well as refuse and linen chutes.

This slim, compact design is an alternate to code prescribed fire-rated shafts and results in significant weight, space and labor savings when compared to traditional shafts.

FyreWrap Elite 1.5 Duct Insulation Air Distribution System (ADS) offers the following features:

  • 1- and 2-hour fire-rated enclosure
  • Alternate to fire-rated shaft
  • Zero clearance to combustibles at all locations on blanket wrap
  • Saves weight, space, labor
  • Thin, lightweight single-layer system
  • High-temperature, biosoluble insulation
  • Durable foil-scrim covering
  • GREENGUARD listed for Microbial Resistance

FyreWrape Elite 1.5 Air Distribution System (Single Layer) Installation Instructions
