METROFLEX'S MASS LOADED VINYL SOUND BARRIER

MetroFlex Acoustic Barrier is a flexible, non-reinforced mass loaded vinyl that resists the passage of sound waves and reduces the transmission of airborne noise. Metroflex Mass Loaded Vinyl Sound Barrier is 1/8" Thick (1 lb/sf) and has an STC rating of 26 which when installed properly performs simliar to a 2" x 4" wall with 5/8" drywall on each side of the wall.

MetroFlex Mass Loaded Vinyl can provide instant mass with damping to any location and create a sound seal from room to room. In walls, ceilings, floors, on machinery, household appliances, around pipes, exterior fences, doors, as curtains to divide a room or over a window, and so on.

PHYSICAL PROPERTIES of MF-10

Weight:                                      1 lb / sq ft

Tensile Strength:                   400 psi

Tear Strength:                        77 lbs

Thickness:                                1/8"

Ultimate Elongation:          200%

Flammability:                       SE "0" in/min.

Temperature Range:         -40°F to 225°F

Note: For best results use MetroFlex Mass Loaded Vinyl in conjunction with Roxul AFB inside the studs.



INSTALLATION GUIDE

1. Measure the height of the wall and cut the MLV the height of the wall with a razor knife.


2. The width of the material is 48", which will cover 2 sections of 24" wide framing or 3 sections of 16" wide framing. (attempt to have joints land on studs when possible).

3. Drape the strip of MLV to be intalled from the top of the wall making sure the MLV is hanging straight.  Hammer in 4-8 MetroFlex MLV Nails into the top wooden header/joist.

4.  Use MetroFlex MLV Nails to attach the rest of the MLV to the studs all the way to the floor.

5a. When two pieces of MLV meet on the stud, cut the pieces so they meet flush in the middle of the stud (do not overlap on a stud). Then use MetroFlex Sound SealR Sealant to seal the gap on the stud.  Smooth out the Sound SealR Sealant so it is flush with the MLV and seal up with MetroFlex SealR Tape.

5b.  When two pieces of MLV do not meet on a stud, overlap the two pieces of MLV (approx 2"-3") and use small strips of MetroFlex SealR tape to horizontally tape the two pieces together every foot. (first put the strip of tape on the underneath peice of MLV and pull forward before tightly taping to the overlapping piece of MLV.)  Once the space between the overlap joint is reduced use a large bead of MetroFlex Sound SealR sealant inbetween the overlapping pieces.  Use a strip of SealR tape to vertically seal the overlap joint. (cut out overlapping material on top and bottom of studs so drywall is not uneven when installed over the MLV.

5. Caulk all gaps and spaces that are left exposed with Sound SealR Sealant, especially the space between the ceiling and the MLV as well as the floor and the MLV.  Any gaps left exposed will reduce the structural STC rating, and create a noise channel through that opening.



ACOUSTICAL PROPERTIES

NOISE TRANSMISSION LOSS (dB) / FREQUENCY (Hz)

HERTZ 125 250 500 1000 2000 4000 STC
MF-10 16 17 22 27 31 36 26



 *PER ASTM E-90

** Many customers that use our MetroFlex Mass Loaded Vinyl also use Roxul AFB, MetroFlex Sound SealR Sealant, and MetroFlex SealR Tape in conjuction with this product to create a complete STC rated system.



FREE  DELIVERY SERVICE

ON ORDERS OF  5+ ROLLS
METROFLEX MASS LOADED VINYL!

*Within our Northern New Jersey and NYC service areas (Exclusions Apply).


METROFLEX'S SOUND-PROOFING PIPE AND DUCT WRAP LAG

MetroFlex's MLV Pipe and Duct Wrap Lag is a flexible 1 lb per square foot reinforced foil-faced faced mass loaded vinyl noise barrier. It is typically used to wrap noisy pipes and ducts to block the noise that transmits through the walls of the pipe or duct as air or other contents move through it as well as to increase the sound absorption in the cavity. The reinforced foil-faced exterior serves as a protective jacket for indoor or outdoor applications. It is easy to cut, wrap and install with matching sound seal lag tape.

Part # MF-10F (Foil only)

Part # MF1-10ALQ (1" Quilted Fiberglass)

Part # MF2-10ALQ (2" Quilted Fiberglass)


 FOIL FACED

Used to wrap noisy pipes, ducts, valves, and fan housings.

Ideal for duct systems running over conference rooms, class rooms, offices, sound studios, and hospital rooms.

W/ ABSORBER/DECOUPLER



METROFLEX'S MASS LOADED VINYL NAILS

MetroFlex's Mass Loaded Vinyl Nails are the ideal fastener for installing Mass Loaded Vinyl on walls and ceilings.  MetroFlex MLV Nails have a large washer head that spreads out the weight of the mass loaded vinyl to help prevent material tearing. (which is common with regular nail/screw heads)

FEATURES:

  • 1-1/2" length

  • Quad-Cut tip helps easily pierce mass loaded vinyl as well as wood

  • 1" diameter head helps spread out the load and prevent material tears

  • Made of high quality galvanized steel

  • Proudly Made In The USA!

Available in 100 packs and 1,000 packs for larger jobs.

Estimated Coverage of 100 pack is 200sf roll of MLV.

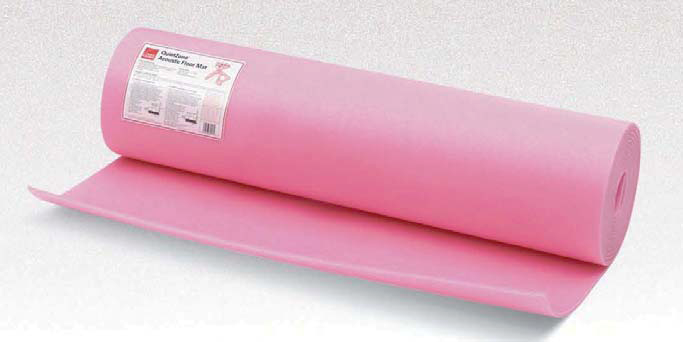

OWENS CORNING
QUIETZONE ACOUSTIC FLOOR MAT

For Floor Applications of our MetroFlex Mass Loaded Vinyl, Owens Corning's QuietZone Acoustic Floor Mat is highly recommended to be installed before adding the MLV to the floor.
